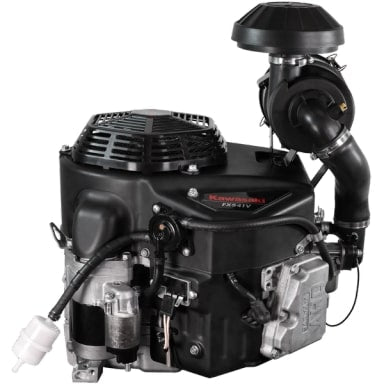

The FX541V engine is precision-designed to power your machines with Kawasaki strength.
This forced air-cooled V-twin engine features an internally vented carburetor with fuel shut-off solenoid. All FX engines are Critical Power SAE-Certified, compact, 90-degree V-twin engines. Every one features hemispherical combustion chambers and overhead V-valve technology that helps ensure low emissions, high power, and smooth operation.
Specifications:
PTO Size: 1" x 3- 5/32"
Shift Type Starter
15 Amp Charging Coil
W/o MFLR
Heavy Duty Canister Air Filter
Overhead v-valve
90° V-twin
Pressurized lubrication system
Electronic spark ignition
Automatic compression release
Internally vented carburetor
Rotating grass chopper screen
Multi-Stage canister air filter
Cast-iron cylinder liners
Metal engine cover with integrated clean out ports
Heavy duty shift-type starter
Displacement 603 cc (36.8 cu. in.)
Number of Cylinders 2
Bore x Stroke 2.9 x 2.8 in. (73 x 72mm)
Compression Ratio 8.1:1
Oil capacity w/filter 1.8 U.S. qt ( 1.7 liters)
Maximum Power 16.5 hp (12.3 kW) at 3,600 RPM
Maximum Torque 32.1 ft lbs (43.4 N·m) at 2,000 RPM
