Description:

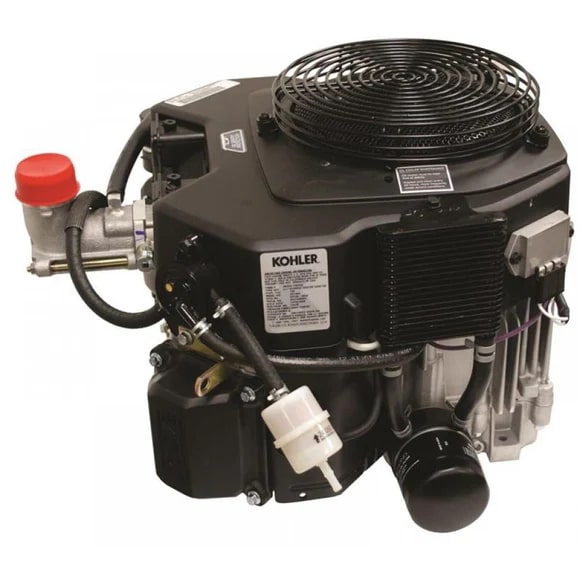

Kohler CV740-0028 Vertical OHV Command PRO Engine, 1.125" x 4" Crankshaft, 7/16"-20 Tapped, 1/4" Full Keyway, 725cc, 25 Gross HP, 39.2 ft lbs Torque, No Air Filter, 20 Amp Charging, Excel Super Z1 Spec, Replaces CV740-0017.

Specifications:

• Brand: Kohler
• Model Number: PA-CV740-0028
• Displacement: 725 cc
• Power Output: 25 Gross HP
• Maximum Torque: 39.2 ft-lbs
• Engine Type: 4-stroke, OHV, twin-cylinder, vertical shaft
• Compression Ratio: 9.0:1
• Bore x Stroke: 3.3" x 2.6"
• Lubrication System: Full pressure with full-flow oil filter
• Oil Capacity: 2.0 qt
• Fuel Type: Gasoline
• Starter Type: Electric
• Charging System: 20 Amp
• Air Cleaner: None (bare engine config)
• Cylinder Bore Material: Cast Iron Liners

Crankshaft Specifications

• Orientation: Vertical
• Diameter: 1.125"
• Length: 4" (Flush)
• End Tapped Size: 7/16"-20
• Keyway: 1/4" Full

Physical Dimensions

• Weight: 110.0 lbs
