Description:

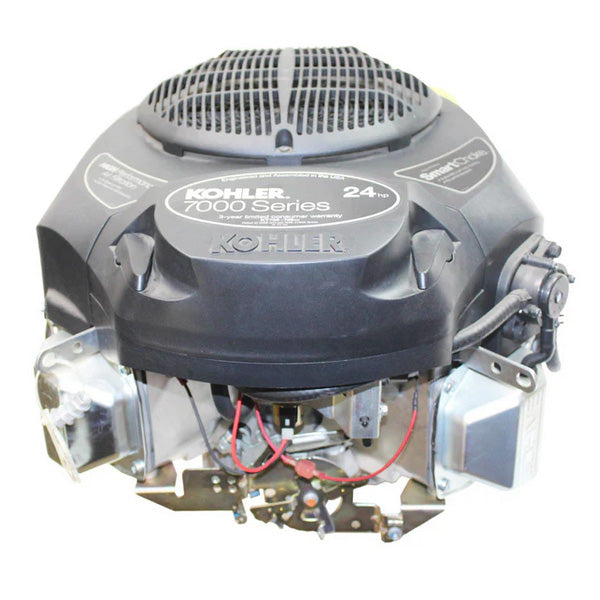

Kohler KT735-3064 Vertical V-Twin 7000 Series Engine, 1.125" x 4.3" Crankshaft, 7/16"-20 Tapped, 1/4" Keyway, 24 Max HP, 725cc, 40.5 ft lbs Torque.

Specifications:

• Brand: Kohler
• Model Number: PA-KT735-3064
• Internal ID: KOH-PA-KT735-3064

Power & Performance

• Displacement: 725 cc
• Power Output: 24 Gross HP
• Maximum Torque: 40.5 ft-lbs
• Maximum RPM: 3200 RPM
• Compression Ratio: 9.1:1
• Bore x Stroke: 3.3" x 2.6"
• Lubrication System: Full pressure with full-flow oil filter
• Oil Capacity: 2.0 qt (1.89 L)
• Fuel Type: Gasoline

Crankshaft Details

• Orientation: Vertical
• Diameter: 1.125"
• Length: 4.3"
• End Tapped Size: 7/16"-20
• Keyway: 1/4"

Other Engine Features

• Starter Type: Electric
• Cylinders: Two (V-Twin)
• Cylinder Bore: Cast Iron Liners
• Air Cleaner: Single Element
• Charging System: Yes
• Ignition: RFI ignition (E16 spec)

Dimensions & Weight

• Weight: 91.0 lbs
